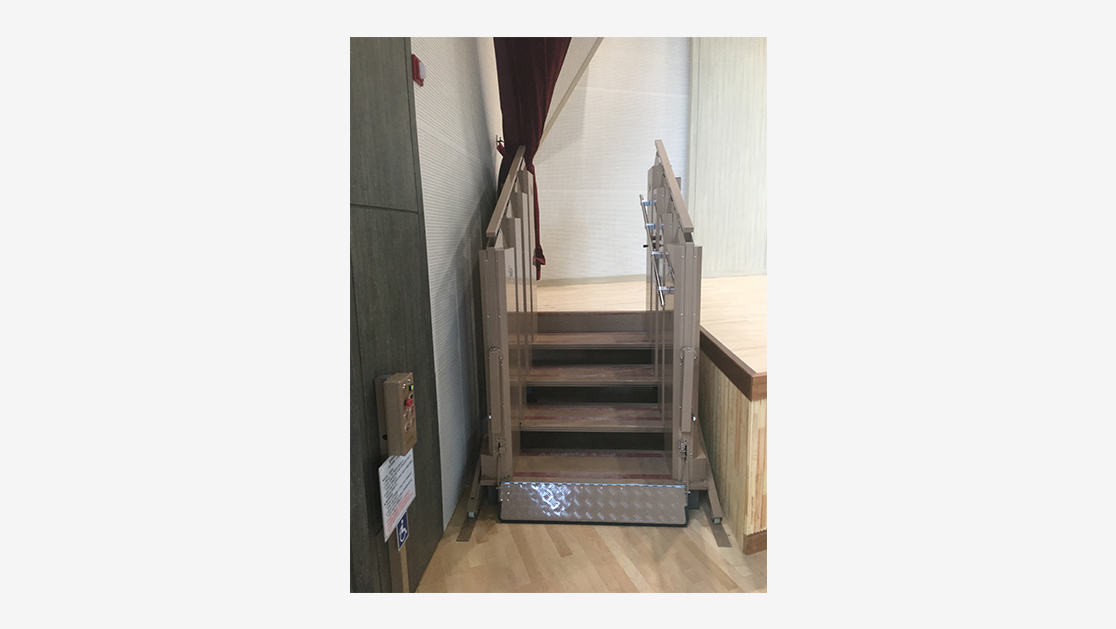

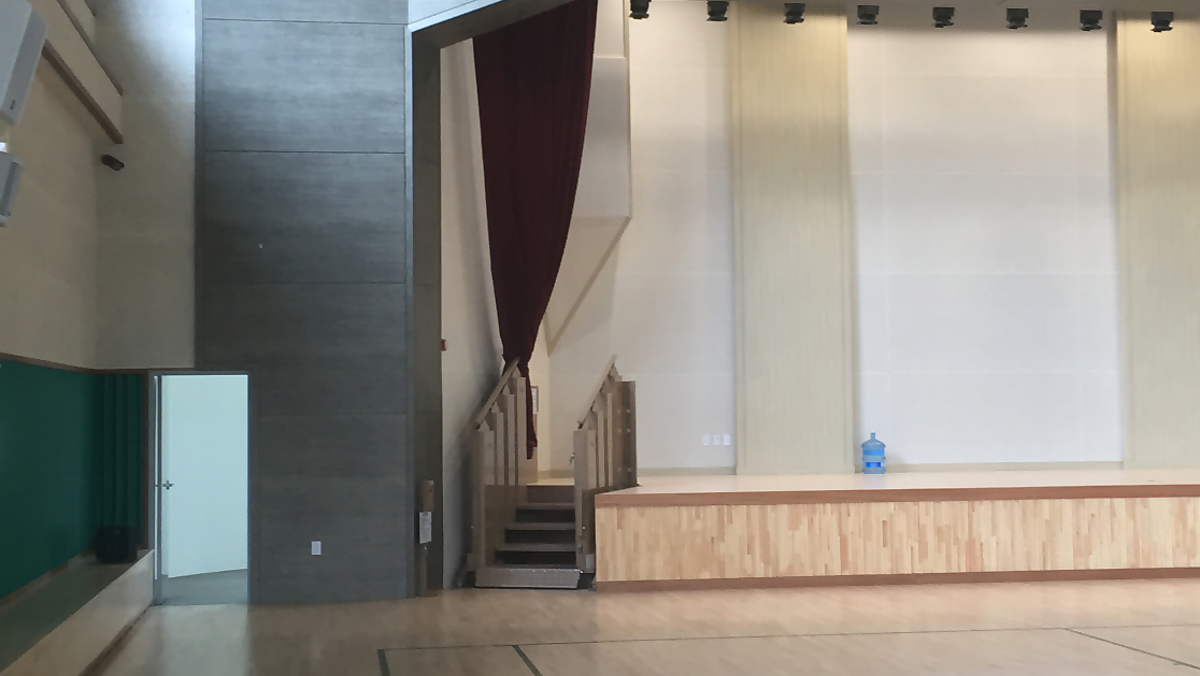

The innovative stair-lift for
your greater convenience on concert stage
Our new product “Stair-lift” can be used as stairs in regular days and can be utilized as a life when the elderly or disabled approach to the stage. Its exceptional function will greatly improve accessibility for elderly and disabled.
Standard specification
Sortation | Stair mode(for non-disabled) | Lift mode(for the disabled) |
Function | Use as a normal stair | For wheelchair(motor scooter), stroller, etc. |
Control type | Controlled by oustide control panel | Controlled by the car user |
Allowable load | 400Kg | 320Kg |
Operation part |
- SCREW : DC MOTOR separate/simultaneous control - TELESCOPIC structure : minimized the installation height of operation part |
|
Safety part |
- Safety guard : prevents the users from falling - Safety sensor : senses the horizontal balance of the lift and lower obstacles - Emergency stop button : inside the car, outside control panel - FINAL switch : cyts the motor power supply in overruns |
Video
Product information
Sortation | Item | Unit | Specifications |
1 | Allowable load | Kg | 320 |
2 | Motor capacity | W | 600 |
3 | Operation noise | dB | 55 이하 |
4 | Operation speed | m/min | 1.6m/min |
5 | Sustained operation duration | m/min | 1.6m/min |
6 | Installation area | W*DMM | 1,520(W) x 1,600(D) |
7 | Installation area | W*DMM | 900(W) x 1,600(D) |
8 | Console panel inside the lift | Control stick, emergency stop | |
9 | Assistant console panel | Console panel key, ascend/descoend button, Emergency stop, stairs/lift switch button | |
10 | Operation type | Screw | |
11 | Driving type | Button presing | |
12 | Control type | PLC | |
13 | Operation part stopper | SELF LOCK-250KG/개 | |
14 | Handrail | Wood | |
15 | Side handrail | Mild steel powdered painting | |
16 | Car bottom | Aluminum checker plate | |
17 | Car side cover | Aluminum checker plate | |
18 | Slope | Aluminum checker plate | |
19 | Safety button |
Emergency stop button(inside the lift, assistant console panel) Snesor button for checking underneath the lift Sensor button for obstacles in the stairs crack |
|
19 | Charging power | V | AC 220V, Single-phase |
20 | Battery | V | DC12V, 70A |
21 | Charger | V | AC 220V → DC24V, 5A |
22 | Power supply | V | AC 220V → DC24V, 1,200W |
